Description
Overview

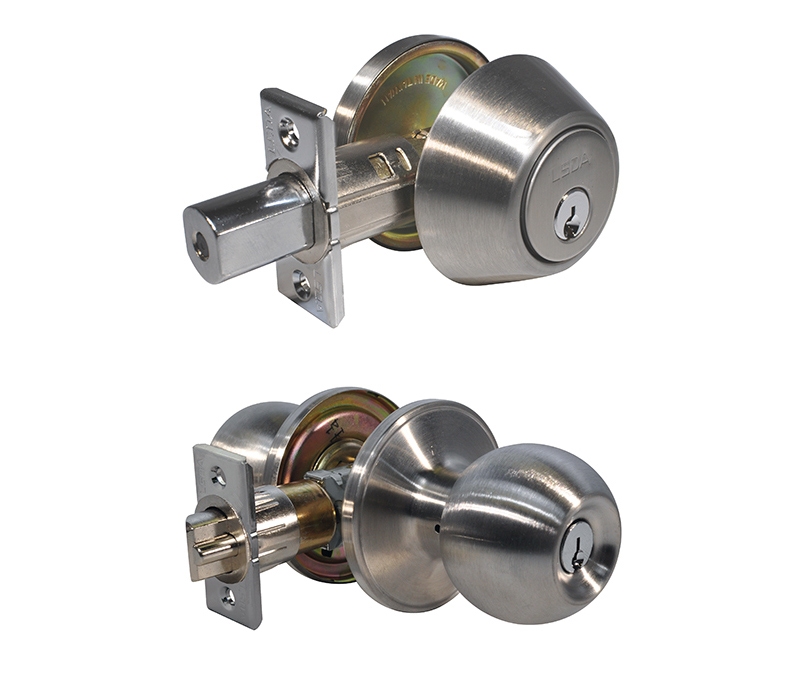

The 03-Series combines a tubular knob lock with a
single cylinder deadbolt. Both locks are
keyed to the same key for convenience and ease
of installation. These locks are recommended for
use on exterior doors.
single cylinder deadbolt. Both locks are
keyed to the same key for convenience and ease
of installation. These locks are recommended for
use on exterior doors.
Compliance
• Knob Locks are ANSI/BHMA 156.2 Series 4000
Grade 3, (UL listed 3-hour latch bolt available
separately for Deadbolt)
• Deadbolts meet ANSI/BHMA 156.2 Series 4000,
Grade 3
• Knob Locks are ANSI/BHMA 156.2 Series 4000
Grade 3, (UL listed 3-hour latch bolt available
separately for Deadbolt)
• Deadbolts meet ANSI/BHMA 156.2 Series 4000,
Grade 3
Applications
• Houses
• Apartments
• Houses
• Apartments
Standard Features:
Latch Adjustable 23/4” and 23/8” Backset, square corner. Full 1” bolt projection, full 1/2”
latch projection
Handing Non-Handed
Materials Stainless Steel or Brass
Strike 23/4” x 11/8” standard for the deadbolt, 21/4” full lip for knob
Door Prep, Knob 21/8” diameter bore x 1” cross bore; 21/4” x 1” latch face; 219/32” Rose Diameter
Door Prep, Deadbolt 11/2” or 21/8” diameter bore, 1” cross bore
Door Thickness 13/8” – 13/4” standard
Keying KW1 or SC1 cylinder; Re keyable, 5-pin; Deadbolt and Knob are Keyed Alike
Latch Adjustable 23/4” and 23/8” Backset, square corner. Full 1” bolt projection, full 1/2”
latch projection
Handing Non-Handed
Materials Stainless Steel or Brass
Strike 23/4” x 11/8” standard for the deadbolt, 21/4” full lip for knob
Door Prep, Knob 21/8” diameter bore x 1” cross bore; 21/4” x 1” latch face; 219/32” Rose Diameter
Door Prep, Deadbolt 11/2” or 21/8” diameter bore, 1” cross bore
Door Thickness 13/8” – 13/4” standard
Keying KW1 or SC1 cylinder; Re keyable, 5-pin; Deadbolt and Knob are Keyed Alike
